machinery for grinding

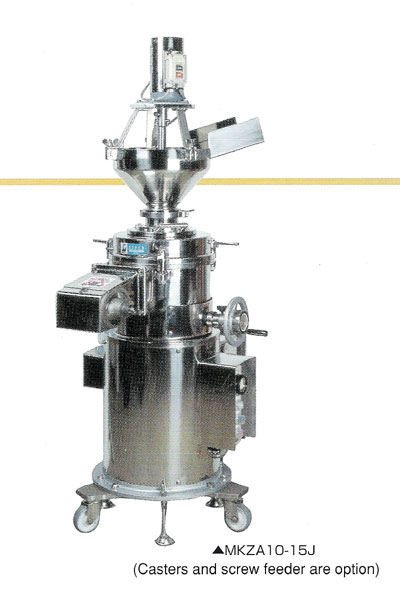

MODEL MASUKO MKZA10-15J / 20J FOR GRINDING

Suitable for :

machinery-for-grinding FRUITS
Guava
Star Fruit
Noni
Pineapple
Papaya
Apple
Limau Kasturi
Roselle
Dragon Fruit
VEGETABLES
Carrot
Ginger
Herbs
Beetroot
Celery
CabbageCOCONUT
Coconut Cream
Coconut Concentrate
Virgin Coconut Oil

FEATURES

  •  The most popular small production models, taking up as little installation space as one square meter.
  • All models feature jackets to accomodate cooling and heating applications. They treat a wide range of raw inputs from low to high viscosity materials. (Screw feeder are optionally available for highly viscous materials.)

SPECIFICATIONS (MKZA10-15J)

  • Motor: 11Kw, 3P
  • Grinder diameter: 250mm
  • Standard capacity (wet): 70 – 1000Kg/Hr
  • External dimensions: 600 (Diameter) X 1305 (H) mm
  • Weight: 250Kg

APPLICATIONS

No

Product
name

Raw
material

Application

Remarks


FOOD

1
marrow remulsion
(bone paste)
bones of animal (chicken, pig, cow, etc.) and fishes, shells ofcrabs and lobsters, and the like

gyoza (fried dumpling stuffed with minced pork), shao-mai,hamburger steak, meat ball, sausage, salami wet form trituration
2
raw gelatin
raw pig skin stripped with steam, inner skin of sow
sausage
wet form trituration
3
corn soup
corn
instant soup, canned soup
wet form trituration
4
ground sesame seeds
sesame seeds
food, drinking, cookies
wet form trituration pasty to roughly ground
5
vegetable or fruit paste or juices
carrot, onion, potato, celery, mugwort, tomato, apple, peach, green
peas
raw material for sauce, health food, cookies
wet form trituration
6
peanut butter, coconut butter
peanut, coconut
seasoning, cookies
wet form trituration
7
bean curd, soy milk, okara (bean curd refuse)
soy bean, bean curd refuse
food, drinking, cookies
wet form trituration okara paste having a size under 70 micron
8
rice flour, refined rice flour
rice, glutinous rice
food
wet form trituration soaked in water
9
sea weeds
sea tangle, wakame sea weed, agar-agar
seasoning, food cookies
wet form trituration
10
powdered tea
green tea
drinking, material for processed food (such as tea-buckwheat noodles
and tea-dumpling)
ca. 5 micrometer size, dry form trituration
11
bean jam
azuki bean
food
wet form trituration
12
cheese, butter, mayonnaise
cheese, butter
highly homogenised paste or fine emulsion
wet form trituration

SPICE

13
mustard, horseradish, Japanese horseradish paste
mustard, horseradish, Japanese horseradish
spice filled in tube or container
wet form trituration
14
chili sauce, tabasco
red pepper
seasoning
wet form trituration
15
ginger paste, garlic paste
chips of ginger or garlic
spice filled in tube or container
wet form trituration
16
guinea pepper paste
seeds, calyces or whole of guinea
spice filled in tube or container
wet form trituration
17
unrefined soy sauce or dripping, unrefined sake paste
unrefined soy sauce, unrefined sake, sake lees
dripping for grilled chicken, amazake (sweet drink made from fermented
rice), vegetables pickled in sake lees
wet form trituration

CHEMICAL

18
glass small powder
scrap
stained glass (color)
dry form trituration
19
ultrafine powder of new ceramic
coarse powder of new ceramic
—–
dry form trituration
20
ultrafine powder of zeolite
coarse powder of zeolite
adsorbent
dry form trituration
21
Teflon powder
chips or flash of Teflon
secondary raw material
wet form trituration
22
ultrafine powder of carbon or activated carbon
coarse carbon or activated carbon powder

—–

wet form trituration
23
rubber powder
coarse powder of hard rubber
filler
wet form trituration
24
hair
cut hair
—–
wet form trituration

MEDICINE

25
herb medicine
fennel, cassis bark, antler, snake
medicine
dry form trituration
26
ultrafine penicillin powder
coarse penicillin powder
medicine
dry form trituration
27
bone powder
animal bones, fish bones
food, health food
dry form trituration
28
ointment
—–
highly diffused, homogenized ointment
wet form trituration

COSMETICS

29
rouge, cream
pigment, medical cream
highly homogenized products
wet form trituration

FUEL

30
composite fuel containing
heavy oil, charcoal
fuel
wet form trituration
  ENVIRONMENT
31
Solve the fiber of natural cellulose

32
Solve the fiber of the collagen

33
Solve the fiber of a natural high polymer
